Construction

Construction

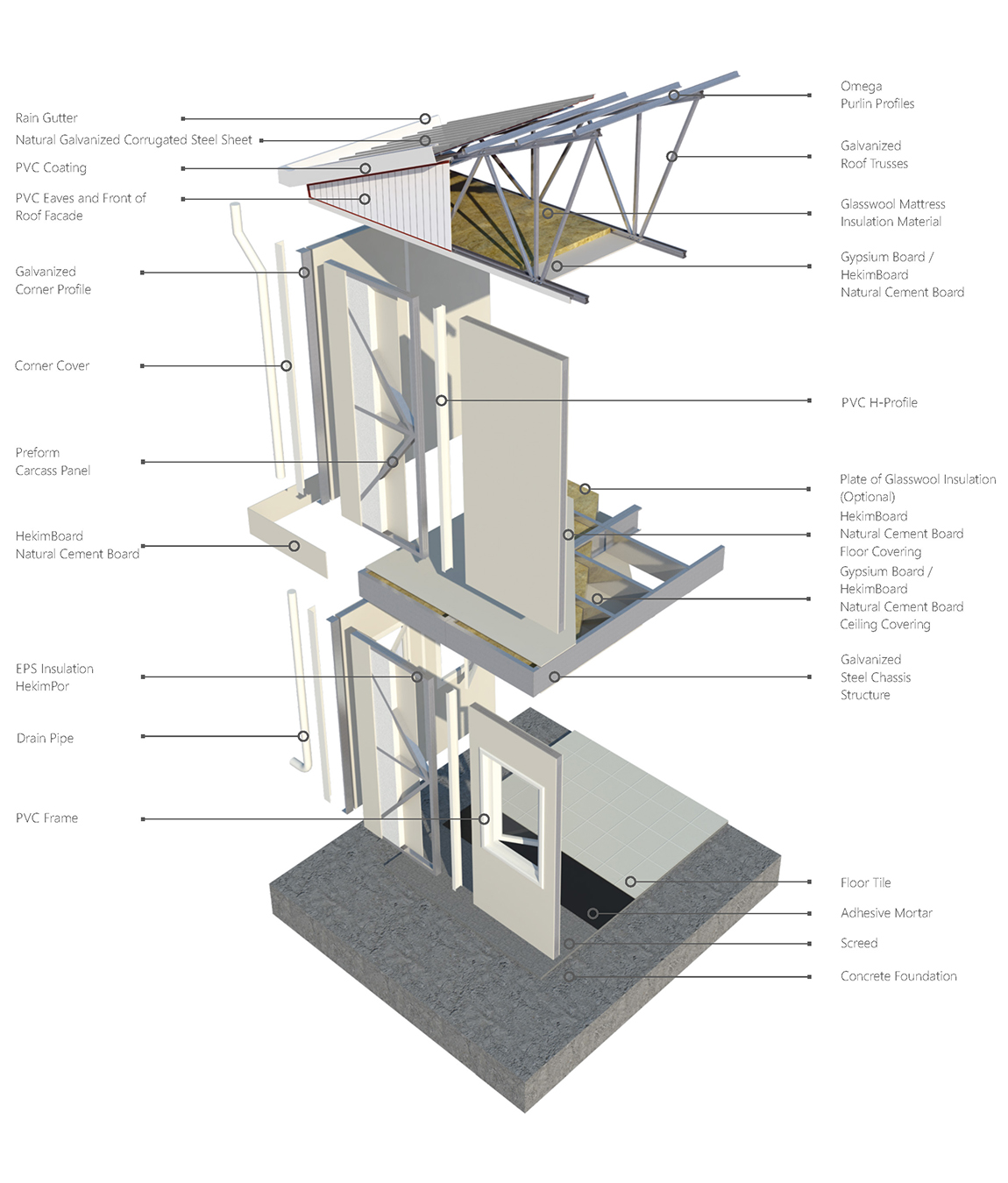

It is construction system, established by combining the structure consisting of the combination of purlin, truss, carcasses, frames, columns and beams; after the carcasses produced by HekimStructureRobotecnology, are coated at the factory and jointed with the apparatus and bulbous (bolted) joints.

Wall

Wall

The surfaces of the wall panels, which are made of galvanized steel profile, are coated in the factory with HekimBoard Natural Cement Plate, which has the class A1 fireproof property.

Optional
  • Patterned HekimBoard Natural Cement Sheet
  • Fugitive HekimBoard Natural Cement Board
  • TurkSiding Natural Cement Plasterboard with Siding
Roof

Roof

The roof system with galvanized steel profile is covered with natural galvanized trapeze sheet.

Optional
  • Painted galvanized trapeze sheet
  • Hekim Sandwich Roof Panel
  • Corrugated bituminous sheet coating
  • Pattern printed membrane
  • Metal tile
  • PVC / metal rain gutter and downslopes
Insulation

Insulation

HekimPor (EPS) is used for insulation of wall panels.
Glass fiber mattress is used in roof insulation.

Optional
Wall
  • Wall type glasswool
  • Stone wool
Roof
  • Stone wool
Doors

Doors

The outer door is a galvanized sheet door and cylindrical lock.
Interior doors are MDF-Lam door.

Optional
Exterior door
  • Aluminum
  • Steel
  • PVC
  • Fire-resistant door
Interior Doors
  • Aluminum
  • American door (sheet or wooden case)
  • PVC
  • Fire-resistant door
Windows

Windows

Double glazed, white colored, PVC joinery.

Optional
  • PVC joinery with colored and wood pattern
  • Aluminum joinery with colored and wood pattern
  • Sliding yard guillotine joinery
  • Double axle joinery
  • Heat-insulated aluminum joinery
  • Aluminum or PVC blinds
  • Swatter
Paint

Paint

Outside; silicone Physician Paint is used.
Interior space; Plastic Physician Paint is used.

Optional
  • Satin paint
  • Patine (Obsoloscent)
Electrical Installation

Electrical Installation

Lighting fixtures consist of switches, sockets, cable - ducts, fuse - fuse boxes and leakage current relays.
Plumbing is plaster top.

Optional
  • Flush mount installation
  • Telephone
  • Data
  • UPS
  • TV
  • Fire detection system
  • Alarm and intelligent construction systems
Plumbing

Plumbing

It consists of a wall mounted ceramic sink, an acrylic shower stall, a toilet with plastic reservoir, and a chrome plated 50 x 100 cm kitchen bottom cupboard.
Plumbing is plaster top.

Optional
  • Flush mount installation
  • WC pan with ceramic reservoir
  • Pedestal washbasin
  • Turkish style toilet
  • Tub
  • Special kitchen cabinet
  • Fire extinguishing system
  • Heating and ventilation system
